Among the many key components of hydraulic systems, double-acting single-rod hydraulic cylinders, thanks to their unique structure and operating mode, are widely used in various types of machinery. Their operating conditions primarily include rodless chamber oil flow, rod chamber oil flow, and differential connection. Each offers distinct advantages in force and speed performance, and there are significant differences in machine tool and other application scenarios. Today, let’s discuss a comparison of these three types.

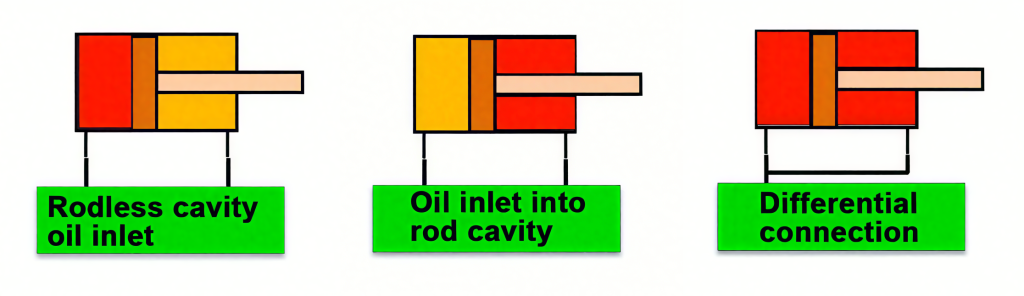

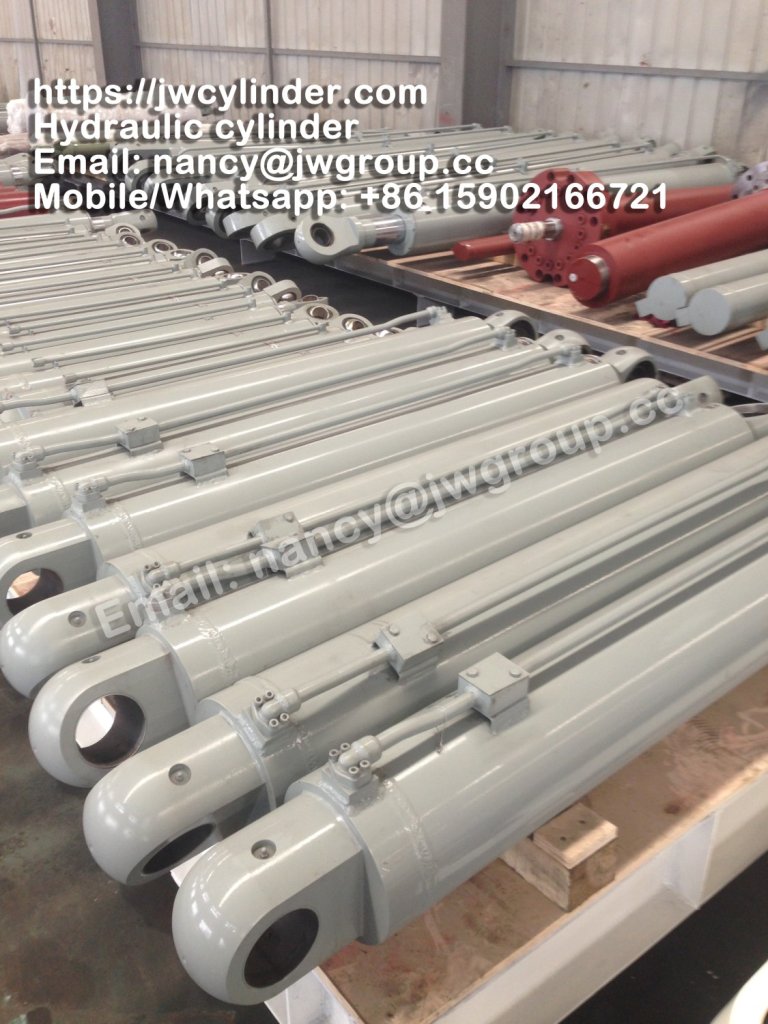

1. Oil Injection into the Rodless Chamber: Powerful and Steady Forward
Principle and Characteristics

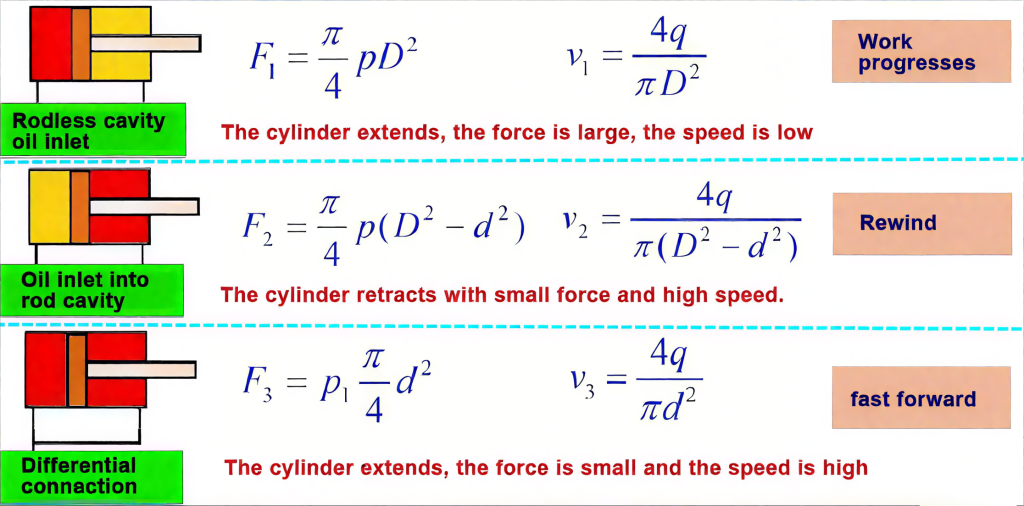

When hydraulic oil is injected into the rodless chamber of a double-acting, single-rod hydraulic cylinder, the piston, pushed by the oil pressure, drives the piston rod to extend, thus extending the cylinder. At this point, the effective area of the piston is the entire piston area. According to the force equation, a larger effective area generates greater force at the same pressure. However, according to the flow equation, for a given flow rate, a larger effective area means a relatively lower piston speed.
Application Areas
On machine tools, rodless hydraulic cylinders are primarily used for heavy-duty cutting processes. For example, milling large molds and turning large shaft parts require strong cutting forces to overcome material resistance. When milling large workpieces on gantry milling machines, the worktable feed relies on a double-acting, single-rod hydraulic cylinder with rodless chamber oil feed. This cylinder provides sufficient force to ensure smooth and precise movement of the worktable, ensuring stability and machining accuracy during the cutting process. Machine tools demand extremely high machining precision. While rodless chamber oil feed has a low speed, this slow and stable movement helps maintain the relative position accuracy between the tool and the workpiece, reducing machining errors.
In concrete pump trucks, boom extension is a typical application of rodless chamber oil feed. Boom extension requires strong support and stability. Cylinders with rodless chamber oil feed provide sufficient force to extend the boom to the desired position while ensuring that the boom does not shake during concrete pumping, which could affect pouring quality. Unlike machine tool applications, concrete pump trucks have relatively less stringent speed requirements and focus more on the load-bearing capacity and stability of the cylinder to adapt to different working environments and operational needs.

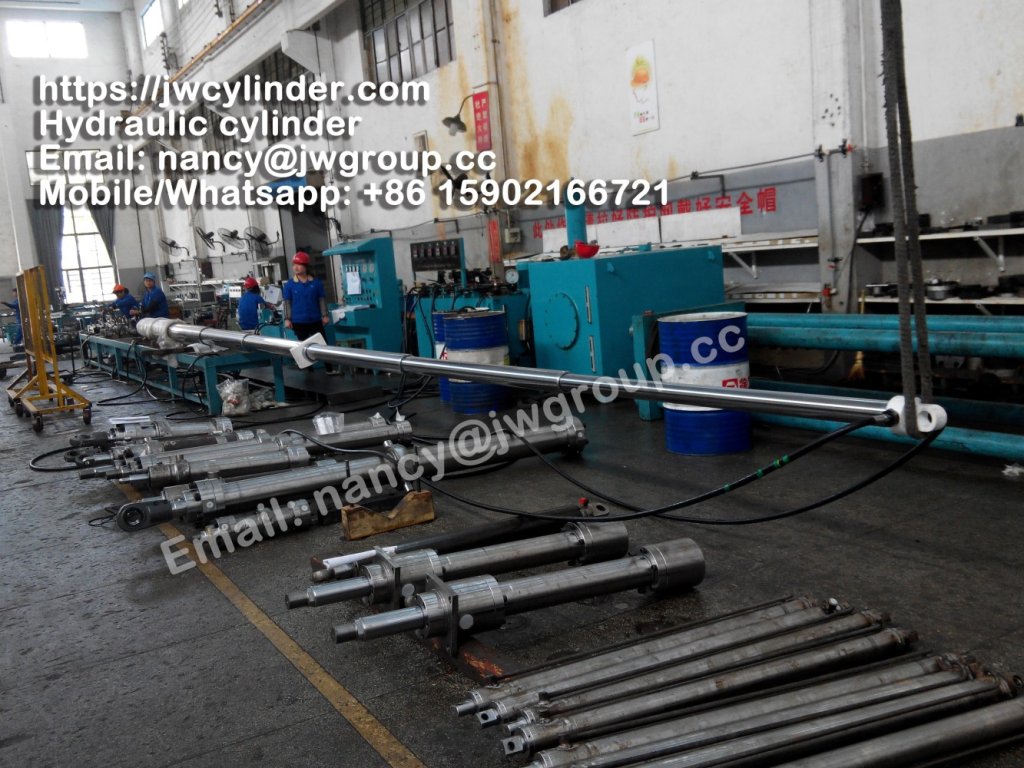

2. Oil in the Rod Chamber: Light and Quick Retraction
Principle and Characteristics
When hydraulic oil enters the rod chamber, the piston, acting under the oil pressure, moves toward the bottom of the cylinder barrel, retracting the piston rod and completing the cylinder retraction. At this point, the effective working area of the piston is the piston area minus the cross-sectional area of the piston rod, which is smaller than when oil is in the rodless chamber. According to the force formula, at the same pressure, oil in the rod chamber generates less force. However, due to the smaller effective working area, the piston speed is relatively higher for a given flow rate.
Application Areas
The tool changing process in machine tools places specific demands on the speed and accuracy of the hydraulic cylinder. For example, in machining centers, after completing a cutting task, the tool holder retracts using a rod-type hydraulic cylinder. While this method generates low force, it is sufficient to retract the tool holder unloaded. Its high speed significantly reduces tool change time and improves machine tool efficiency. Furthermore, machine tools demand high accuracy and repeatability in tool changes. The rod-type hydraulic cylinder ensures rapid retraction while ensuring the tool holder returns to its precise initial position, ready for the next tool change.
In stamping machines used in automotive manufacturing, rod-type hydraulic cylinders are commonly used to retract dies after stamping. The die retraction mechanism in stamping machines utilizes a double-acting, single-rod hydraulic cylinder with rod-type hydraulic cylinders, enabling rapid retraction with minimal force and improving stamping cycle times. Compared to tool changing applications on machine tools, the retraction speed requirement for stamping machines is even more critical, as it directly impacts overall production efficiency. As for the accuracy requirements of the return position, although there are certain standards, the tolerance range can be slightly larger than the high precision requirements of machine tool tool changing.

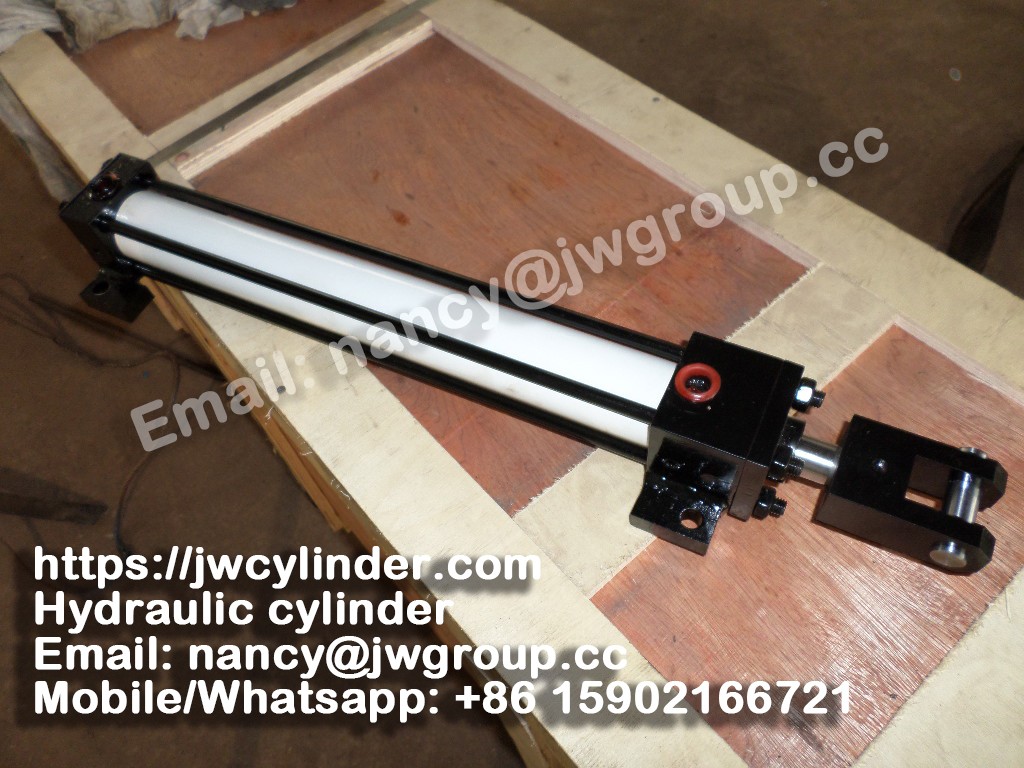

3. Differential Connection: Extremely Fast and Light-Loaded Advance
Principle and Characteristics
A differential connection is a special operating method that connects the rodless and rod chambers via an oil pipe and simultaneously introduces pressurized oil. Because the effective area of the rodless chamber is larger than that of the rod chamber, the piston extends due to the pressure difference between the two sides. At this point, the oil flow entering the rodless chamber comes partly from the pump output and partly from the rod chamber. In other words, the oil discharged from the rod chamber does not return to the tank but instead participates in the piston’s movement, increasing the piston’s speed and achieving the fastest possible movement. This is commonly known as “flow regeneration.” Regarding the applied force, although the rodless chamber has a larger effective area, the pressurized oil flowing into the rod chamber partially offsets the pressure in the rodless chamber, resulting in a smaller force than when the rod chamber is supplied with oil alone, but greater than when the rod chamber is supplied with oil alone.
Application Areas
Differential coupling plays a vital role in the rapid feed phase of machine tools. For example, CNC lathes often employ differential coupling to save time and improve machining efficiency during the tool approach to the workpiece. During this phase, the tool load is light, and the differential coupling allows the worktable to quickly approach the workpiece at a higher speed, reducing idle travel time. When the tool is about to contact the workpiece, it switches to another appropriate operating mode for precise machining. This application leverages the high speed of the differential coupling while meeting the machining accuracy requirements of the machine tool, achieving a perfect combination of efficiency and precision.
In automated sorting equipment in the logistics industry, the item push mechanism sometimes utilizes a double-acting, single-rod hydraulic cylinder with a differential coupling. For example, when sorting light packages on a conveyor belt, it is necessary to quickly push the packages to designated diversion channels. Cylinders with differential couplings can achieve this push action at a higher speed with less force, meeting the speed requirements of logistics sorting. Compared to machine tool applications, logistics sorting equipment has lower precision requirements and places greater emphasis on operating speed and efficiency to accommodate the rapid sorting of large quantities of items.
Brief summary
Each of these three operating modes of a double-acting, single-rod hydraulic cylinder offers unique advantages in force and speed. In machine tools and other applications, these three modes demonstrate varying application and importance, depending on their operating characteristics and requirements. Engineers must carefully consider these differences and optimally select the cylinder’s operating mode to optimize hydraulic system performance and ensure efficient and stable operation of various types of machinery.
