In industrial power transmission, hydraulic cylinders are often called the “muscles of industry.” From heavy steel structures on construction sites to high-precision automated production lines in factories, hydraulic cylinders are essential for converting hydraulic power into linear, reciprocating mechanical motion.
Yet when designing hydraulic systems or selecting equipment for maintenance, engineers and procurement professionals are often faced with a basic but critical question: should a single-acting cylinder or a double-acting cylinder be chosen?
This article examines the differences between these two cylinder types from several angles, including operating principles, internal design, control methods, and economic considerations.
01.Single-acting hydraulic cylinder

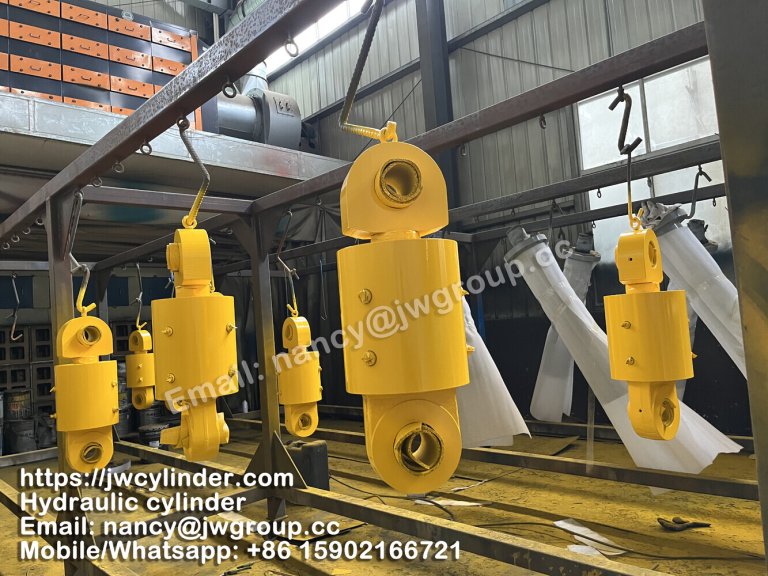

1. What is a single-acting hydraulic cylinder?

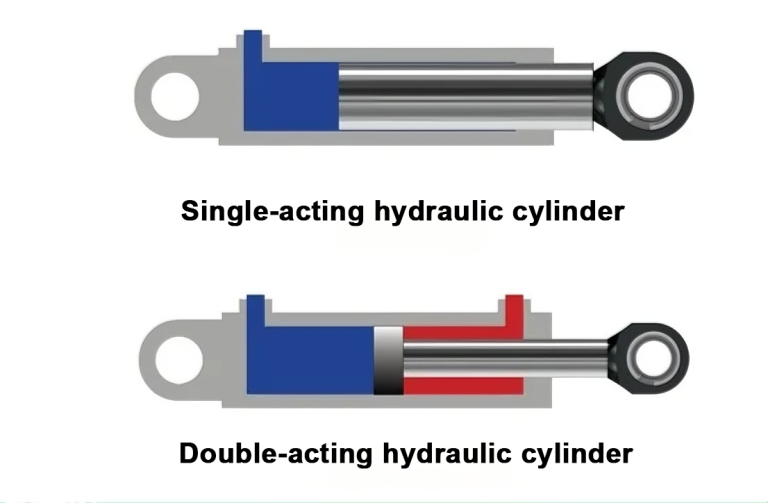

The definition of a single-acting cylinder is straightforward: hydraulic fluid acts on only one side of the piston, generating thrust in one direction (usually extension).
2. Working Principle and Return Mechanism
In a single-acting system, when high-pressure oil enters the cylinder’s inlet port, the piston is pushed out. However, when the piston needs to “return,” the hydraulic system does not provide reverse power; instead, it relies on external forces:
- Gravity return: The piston is pushed back by the weight of the load itself (e.g., the cargo box of a dump truck).
- Spring return: A large spring is installed internally, and the spring automatically returns to its original position after the pressure is released.
- Mechanical return: An externally connected mechanical device forcibly pulls it back.
3. Advantages of Single-Acting Cylinders
- Lower system cost: Requires only a single oil line and a simple control valve.
- Compact structure: Due to the lack of complex internal bidirectional sealing requirements, it is easier to install in certain confined spaces.
- Lower energy consumption: The return stroke does not consume hydraulic pump power, making it very energy-efficient in specific gravity-assisted applications.
4. Limitations
The limitation of a single-acting cylinder lies in its “passivity.” It cannot output power during the return stroke, and the return speed is limited by the external load or spring strength, making precise cycle time control difficult.
02. Double-acting hydraulic cylinder
1. What is a double-acting hydraulic cylinder?
A double-acting hydraulic cylinder has two ports. Hydraulic fluid can enter both sides of the piston alternately, generating thrust or pull in both extension and retraction directions.
2. Differential Motion and Control
Due to the presence of the piston rod, the effective force-bearing area on both ends of the piston is unequal (rod side vs. rodless side). This results in the extension force of a double-acting cylinder usually being greater than the retraction force under the same pressure, but the retraction speed is faster. Through precise proportional valve control, double-acting cylinders can achieve extremely smooth, high-speed, and accurate position control.
3. Advantages of Double-Acting Hydraulic Cylinders
Bidirectional operation: It can both push and pull, offering great versatility.
High control accuracy: Regardless of the direction of movement, the speed and force are under the control of the hydraulic power unit.
High cycle efficiency: Capable of reciprocating motion at very high frequencies, suitable for highly automated production lines.
4. Limitations
A more complex structure means more seals (increasing the risk of leaks), more piping (dual oil circuits), and higher system acquisition costs.
03. Comparison
To understand this more clearly, we can compare them across the following five key dimensions:
1. Valves and piping
- Single-acting: Usually used with a three-way three-position valve or a simpler single-way switching valve.
- Double-acting: Requires a four-way valve (such as a three-position four-way solenoid directional control valve), resulting in a more complex system wiring.
2. Sealing Design
- Single-acting: Only requires consideration of unidirectional pressure sealing.
- Double-acting: The piston must be equipped with a bidirectional sealing ring to prevent high-pressure oil from “leaking” between the two chambers.
3. Maintenance and Durability
Single-acting cylinders have fewer parts and therefore fewer potential failure points; however, if it is a spring return type, spring fatigue failure is a potential risk. Maintenance of double-acting cylinders focuses on the wear of the piston seals.
4. Application Scenarios (Typical Cases)
- Single-acting: Scissor lift platforms, construction jacks, dock loading bridges.
- Double-acting: Excavators (boom and bucket), CNC machine tools, die-casting machines, industrial robot joints.
04. How to choose?
In actual procurement or design, avoid blindly pursuing “all-inclusive functionality.” The following decision tree can be used as a reference:
1. Does the load always move in a fixed direction?
Yes (and no force is needed for the return stroke): Prioritize single-acting cylinders.
No (requires both pushing and pulling): Double-acting cylinders are necessary.
2. Are there requirements for the return speed?
Not important, as long as it returns: Single-acting cylinders.
Requires fast and precise return: Double-acting cylinders.
3. What are the space and budget constraints?
Extremely budget-sensitive and limited space: Single-acting cylinders.
Seeking long-term system stability and functional expandability: Double-acting cylinders.
