Electroplated hard chrome can achieve a hardness of HV800-1100 or even higher. The fundamental reason for this lies in the inherent crystalline structure characteristics of chromium metal and the extreme modification of its microstructure through the special electroplating process.

It’s not simply “plating a layer of hard metal,” but rather, through the electroplating process, an in-situ “growth” of a reinforced layer with ultra-fine grains, high internal stress, and a unique structure is achieved.

I. Nanocrystalline and Ultrafine-Grained Structure

The extremely fine microstructure created by the electroplating process is the primary source of the high hardness of electroplated chromium, specifically due to:

The electroplating process is a rapid cathodic deposition process. Under suitable process parameters (such as temperature, current density, and electrolyte composition), chromium atoms rapidly deposit and nucleate on the substrate surface. This high-speed deposition inhibits grain growth, resulting in:

Extremely small grain size: typically reaching the nanoscale (tens to hundreds of nanometers).

A large number of grain boundaries: According to the Hall-Petch effect, the hardness of a material is inversely proportional to the square root of the grain size. The finer the grains, the more grain boundaries there are. These grain boundaries hinder the movement of dislocations (the carriers of plastic deformation), making it difficult for the material to undergo plastic deformation, which is manifested macroscopically as extremely high hardness. This is the main reason for the high hardness of electroplated chromium.

II. Formation of Hydrides and Internal Stress in the Plating Layer

The electrodeposition efficiency of chromium is very low, and a large amount of hydrogen gas is released during the process. Some of the hydrogen enters the plating layer in atomic form, forming a supersaturated solid solution or brittle chromium hydrides.

These tiny hydride particles act as dispersion strengtheners, pinning down dislocations like nails and further hindering deformation. At the same time, the incorporation of hydrogen and the resulting lattice distortion create extremely high internal stresses (usually tensile stress) within the coating. This high internal stress state also makes the material more resistant to deformation, contributing to its hardness, but it is also the reason why the coating is prone to microcracking.

III. Intrinsic Properties and Phase Structure of Chromium

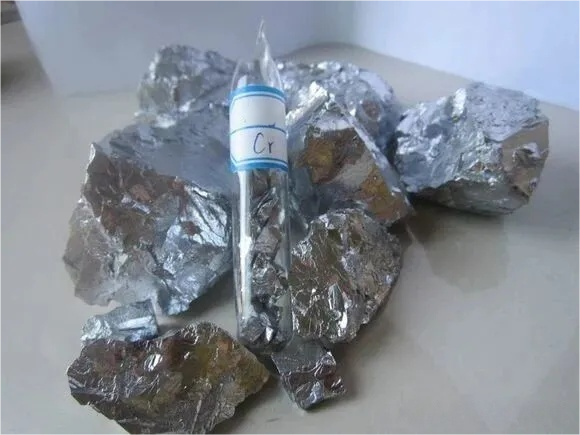

Chromium itself is a hard and brittle transition metal. Its body-centered cubic crystal structure is inherently more resistant to plastic deformation than face-centered cubic structures (such as copper and gold), providing a fundamental basis for its hardness.

Rapid deposition can lead to the formation of an amorphous or highly defective microcrystalline structure in the plating layer. This structure lacks a complete crystal slip system, making it very hard.

IV. Influence of Process Parameters

The hardness of electroplated chromium can be precisely controlled through process parameters:

Current density: Generally, within a certain range, increasing the current density leads to finer grains and increased hardness.

Electrolyte temperature: At lower temperatures, deposition is faster, resulting in finer grains and higher hardness (but also greater internal stress and brittleness). The commonly used hard chromium plating temperature (55-60°C) represents a balance between hardness and adhesion/toughness.

Electrolyte composition: In traditional chromic acid electrolytes, sulfate ions act as a catalyst, and their concentration ratio has a decisive influence on the deposition process and coating structure.

V. Potential Hazards to Note

1. Internal stress is a double-edged sword: Excessive internal stress can directly lead to the formation of microcracks, which can become rapid pathways for corrosive media (chloride ions) to reach the substrate.

2. Hydrogen embrittlement risk: Hydrogen produced during the electroplating process can penetrate the substrate, potentially leading to hydrogen embrittlement and reduced material toughness.

The high hardness of electroplated chromium is primarily due to the nanocrystalline structure resulting from the rapid electrodeposition process, coupled with hydride dispersion strengthening and high internal stress. This mechanism provides ultra-high hardness, but also brings with it “side effects” such as microcracks and stress.
